CSWA: Types of Views

A big part to properly using SOLIDWORKS is knowing what views should be used in certain situations.

You will find several questions on the CSWA exam that asks you to identify what type of view is being created.  I've whipped up a few types below.

Look them over and see if you can identify them.  I've put the answers at the bottom.  Make sure you are familiar with all view types before starting the exam.

A)

 B)

 C)

 D)

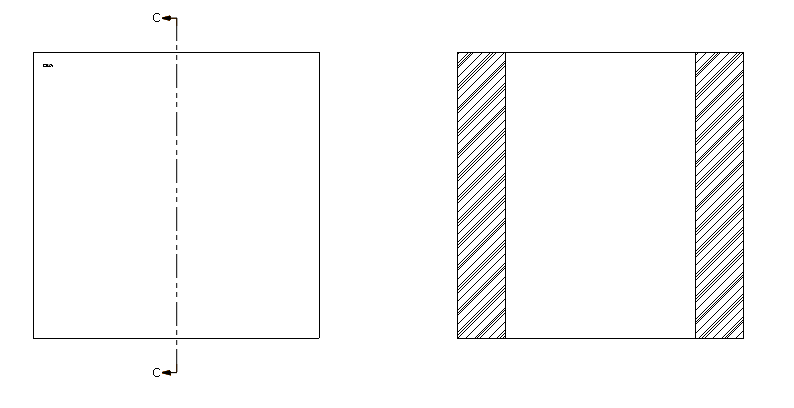

 E)

A) Broken Out

B) Break (Vertical)

C) Crop

D) Detail

E) Section
